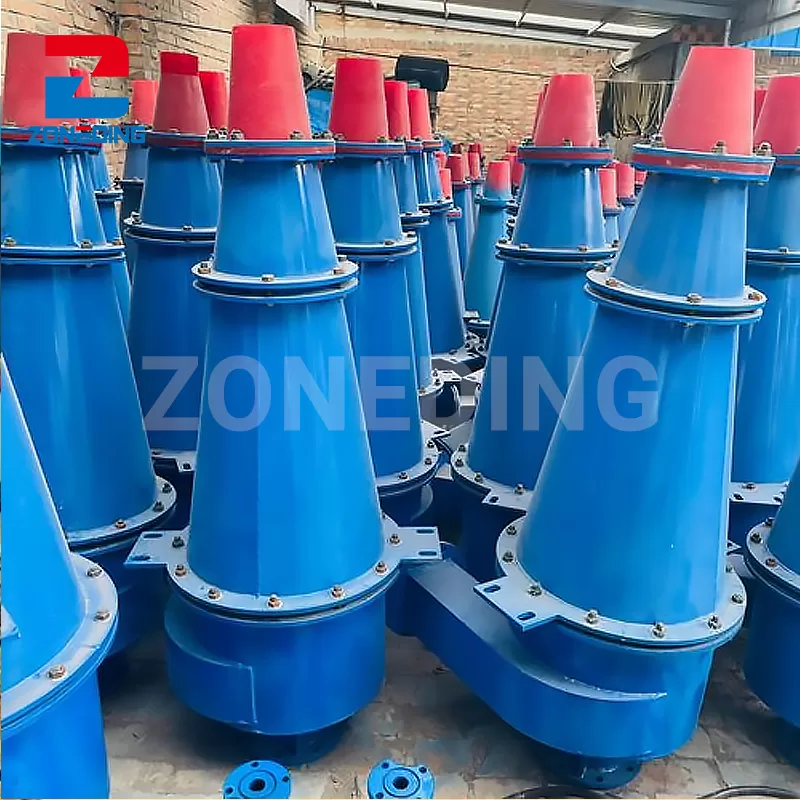

Hydrocyclone

Ang hydrocyclone ay isang aparato na nag-uuri ng mga materyales ayon sa laki ng butil at gumagamit ng centrifugal force upang mapataas ang rate ng pag-ulan ng mga particle.

Capacity: ≤ 542 m³/h
Function: Classification; Separation; Washing/Cleaning
A hydrocyclone is a simple mechanical device with no moving parts that uses centrifugal force to separate, classify, or sort particles in a liquid slurry.

WhatsApp Chat

Kumuha ng Quote Ngayon

What is a Hydrocyclone?

A hydrocyclone, also known as a cyclone separator, is a static device that uses centrifugal force to separate particles from a liquid stream based on their size, density, and shape. Hydrocyclones do not have moving parts.

Hydrocyclones are simple. Hydrocyclones are reliable. Hydrocyclones are cost-effective. That is why hydrocyclones are widely used for solid-liquid separation, mineral processing, and wastewater treatment.

A hydrocyclone is a static separation device with no moving parts that utilizes fluid pressure to classify or separate particles within a liquid slurry. The process begins when slurry is pumped tangentially at high velocity into the cylindrical upper section, creating a powerful primary vortex.

The immense centrifugal force generated by this vortex throws heavier, denser, or coarser particles toward the inner wall. These solids spiral down the conical section and discharge through a narrow opening at the bottom, known as the apex, forming a concentrated stream called the underflow. Meanwhile, a low-pressure core in the center of the cyclone causes most of the liquid and the lighter, finer particles to reverse direction, forming an inner vortex. This secondary vortex travels upward and exits through a central pipe at the top, the vortex finder, as a more dilute stream known as the overflow. This elegant and efficient design makes the hydrocyclone an indispensable tool for separation and classification in industries such as mining, oil and gas, and wastewater treatment due to its simplicity, low cost, and high throughput.

Talaan ng nilalaman

What is a Hydrocyclone?
What are the Different Types of Hydrocyclones?
How Does a Hydrocyclone Work? (Hydro cyclone work principle)
What is Hydroclone Used for? (Hydrocyclone Application)
Features of Hydrocyclone
What are the Key Advantages of Using Sand Cyclones?
What are the Key Components of a Hydrocyclone Sand Separator? (Hydrocyclone Structure)
What is Efficiency of Hydrocyclone?
Technical Parameters for ZONEDING Hydrocyclone
What is the Price of a Cyclonic Separation System?
Why Choose Water Cyclone Separator from ZONEDING?
Factors Affect Cyclone Separation Performance
How to Choose the Right Hydrocyclone Filter?
What are the Common Issues Encountered with Cyclone Water?
What are the Maintenance Requirements for Hydrocyclones?
FAQ
Kaugnay na Mga Produkto

What are the Different Types of Hydrocyclones?

Hydrocyclones come in various designs, including liquid-liquid hydrocyclones, solid-liquid hydrocyclones, and multi-hydrocyclone systems. The right type depends on the application.

Consider these types when selecting a hydrocyclone:

Solid-Liquid Hydrocyclones: These hydrocyclones are for separating solid particles from a liquid stream. A sand cyclone is a type of solid-liquid hydrocyclone.
Liquid-Liquid Hydrocyclones: These hydrocyclones are for separating two immiscible liquids, like oil and water. A hydrocyclone oil water separator nasa ilalim ng kategoryang ito.
Multi-Hydrocyclone Systems: These systems use multiple hydrocyclones in parallel to increase capacity.

At ZONEDING, our engineers analyze your specific slurry and process goals to select the perfect Hydrocyclonnes.

How Does a Hydrocyclone Work? (Hydro cyclone work principle)

The hydrocyclone work principle involves injecting a slurry tangentially into a cone-shaped vessel. The resulting centrifugal force separates particles, with heavier particles moving to the wall and exiting through the apex (underflow), while lighter particles exit through the vortex finder (overflow).

Here is a breakdown of how a hydro cyclone works:

Feed Entry: The slurry enters the hydrocyclone tangentially under pressure.
Centrifugal Force: This creates a swirling vortex inside the cone.
Paghihiwalay: Heavier, coarser particles are forced to the outside walls. The coarser particles spiral down to the apex and discharge as underflow.
Overflow Discharge: Lighter, finer particles move towards the center and exit through the vortex finder as overflow.

What is Hydroclone Used for? (Hydrocyclone Application)

Hydrocyclones are used for various applications, including mineral processing, wastewater treatment, oil and gas production, and chemical processing. The hydrocyclone application depends on the type of materials being separated.

Here are some key hydrocyclone applications:

Pagproseso ng Mineral: Hydrocyclones classify particles for grinding circuits, pre-concentration, and tailings management.
Paggamot ng Wastewater: Hydrocyclones remove solids from wastewater streams, improving water quality.
Produksyon ng Langis at Gas: Hydrocyclones separate oil, water, and sand in oil and gas extraction.

Features of Hydrocyclone

Key features of a hydrocyclone include its simple design, high capacity, low operating costs, and ability to handle abrasive materials. These features make mga hydrocyclone a popular choice for separation tasks.

Ilang kapansin-pansin hydrocyclone mga tampok:

Simpleng Disenyo: No moving parts, meaning less maintenance.
Mataas na Kapasidad: Processes large volumes of slurry.
Mga mababang Gastos sa Operasyon: Requires minimal energy and labor.
Abrasive Material Handling: Can withstand harsh, abrasive slurries.

What are the Key Advantages of Using Sand Cyclones?

The key advantages of using sand cyclones include efficient sand removal, compact design, low maintenance, and continuous operation. A sand cyclone is effective at removing sand and grit from liquids.

Narito ang ilang mga benepisyo ng paggamit sand cyclone:

Efficient Sand Removal: Removes sand and grit effectively, protecting downstream equipment.
Compact na Disenyo: Small footprint, easy to integrate into existing systems.
Mababang Maintenance: No moving parts, meaning less wear and tear.
Tuloy tuloy na operasyon: Operates continuously, maximizing throughput.

What are the Key Components of a Hydrocyclone Sand Separator? (Hydrocyclone Structure)

The key components of a hydrocyclone sand separator include the feed inlet, vortex finder, cyclone body, apex (underflow orifice), and overflow outlet. These components work together to achieve efficient separation.

The hydrocyclone structure consists of:

Feed Inlet: Introduces the slurry into the cyclone.
Vortex Finder: The outlet for the lighter fraction (overflow).
Cyclone Body: The conical section where separation occurs.
Apex (Underflow Orifice): The outlet for the heavier fraction (underflow).
Overflow Outlet: Discharges the lighter fraction.

What is Efficiency of Hydrocyclone?

The efficiency of hydrocyclone is determined by its ability to accurately separate particles based on size and density. Factors like feed pressure, solids concentration, and hydrocyclone design influence efficiency.

Ang hydrocyclone efficiency depende sa:

Feed Pressure: Higher pressure increases the centrifugal force and sharpens the separation.
Solids Concentration: Optimal concentration is critical; too high or low reduces efficiency.
Hydrocyclone Design: The geometry of the cyclone influences its separation performance.

Technical Parameters for ZONEDING Hydrocyclone

modelo	Diameter (mm)	Taas (mm)	Feeding pressure(Mpa)	Separation size(μm)	Timbang (kg)
JAX-75	75	472.5	0.1-0.5	20-60	4
JAX-100	100	499	0.05-0.4	20-60	8
JAX-125	125	590	0.05-0.4	25-65	10
JAX-150	150	786	0.05-0.4	30-75	22
JAX-200	200	1114	0.05-0.4	40-100	36
JAX-250	250	1380	0.05-0.4	40-100	63
JAX-300	300	1490	0.03-0.4	50-150	88
JAX-350	350	1674	0.03-0.4	50-150	135
JAX-500	500	2280	0.03-0.4	74-200	416
JAX-660	660	2720	0.03-0.4	74-200	950

What is the Price of a Cyclonic Separation System?

Ang hydrocyclone price varies depending on the size, material, and design. A simple cyclonic na paghihiwalay system can cost a few thousand dollars, while larger, more complex systems can cost tens of thousands.

Hydrocyclone cluster used for desliming fine ore slurry

Mga kadahilanan na nakakaimpluwensya hydrocyclone price:

Laki at Kapasidad: Larger cyclones and systems with higher capacities are more expensive.
Materyal ng Konstruksyon: Specialized materials like ceramics increase the price.
Pagiging kumplikado ng Disenyo: Multi-hydrocyclone systems and custom designs cost more.

Why Choose Water Cyclone Separator from ZONEDING?

Choose a water cyclone separator from ZONEDING for reliable performance, durable construction, and customized solutions. We offer a range of hydrocyclones designed for various applications.

ZONEDING’s water cyclone separator offers:

Maaasahang Pagganap: Consistent and efficient separation.
Matibay na Konstruksyon: Binuo upang mapaglabanan ang malupit na mga kondisyon sa pagpapatakbo.
Mga Pasadyang Solusyon: Iniayon sa iyong mga partikular na pangangailangan.

Factors Affect Cyclone Separation Performance

Mga kadahilanan na nakakaapekto cyclone separation performance include feed flow rate, feed solids concentration, particle size distribution, and operating pressure. Optimizing these factors is crucial for maximizing efficiency.

Key factors influencing performance:

Rate ng Daloy ng Feed: Too high or too low can reduce separation efficiency.
Feed Solids Concentration: Maintaining an optimal concentration is important.
Pamamahagi ng Laki ng Particle: A wide range of particle sizes can make separation more challenging.
Pagpipilit ng Operasyon: Affects the centrifugal force and separation efficiency.

How to Choose the Right Hydrocyclone Filter?

Pagpili ng tama filter ng hydrocyclone involves considering the specific application, flow rate, particle size, and desired separation efficiency. Matching the filter to the requirements ensures optimal performance.

Isaalang-alang ang mga salik na ito kapag pumipili ng a filter ng hydrocyclone:

application: Solid-liquid separation, liquid-liquid separation, or classification.
Daloy ng rate: Select a cyclone with the appropriate capacity.
Laki ng maliit na butil: Match the cyclone’s cut size (D50) to the target particle size.
Desired Separation Efficiency: Consider the required level of separation.

What are the Common Issues Encountered with Cyclone Water?

Common issues encountered with cyclone water include plugging, roping (unstable underflow), excessive wear, and reduced separation efficiency. Regular monitoring and maintenance can prevent these issues.

Potential problems with cyclone water mga sistema:

Pagsaksak: Blockages in the apex or feed inlet.
Roping: Unstable underflow discharge.
Sobrang suot: Erosion of the cyclone components.
Reduced Separation Efficiency: Due to improper operating conditions or wear.

What are the Maintenance Requirements for Hydrocyclones?

Maintenance requirements for hydrocyclones include regular inspection for wear and plugging, cleaning of the feed inlet and apex, and replacement of worn liners. Proper maintenance extends the life of the hydrocyclone and ensures optimal performance.

Essential maintenance tasks:

Regular na Inspeksyon: Check for wear, plugging, and damage.
Paglilinis: Remove blockages from the feed inlet and apex.
Liner Replacement: Replace worn liners to maintain efficiency.

FAQ

Q: What is the typical lifespan of a hydrocyclone liner?
- A: The lifespan depends on the abrasiveness of the slurry, but typically ranges from 6 months to 2 years.
Q: How often should I inspect my hydrocyclone?
- A: Regular inspections should be conducted at least once a week to check for wear, plugging, and damage.
Q: What can I do to prevent plugging in my hydrocyclone?
- A: Ensure proper screening of the feed slurry to remove large particles and maintain a consistent feed flow rate.
Q: What is the optimal feed pressure for my hydrocyclone?
- A: The optimal feed pressure depends on the hydrocyclone design and the specific application, but typically ranges from 20 to 60 psi.
Q: Can I use a hydrocyclone to separate different types of minerals?
- A: Yes, hydrocyclones can be used to separate minerals based on their size and density differences.
